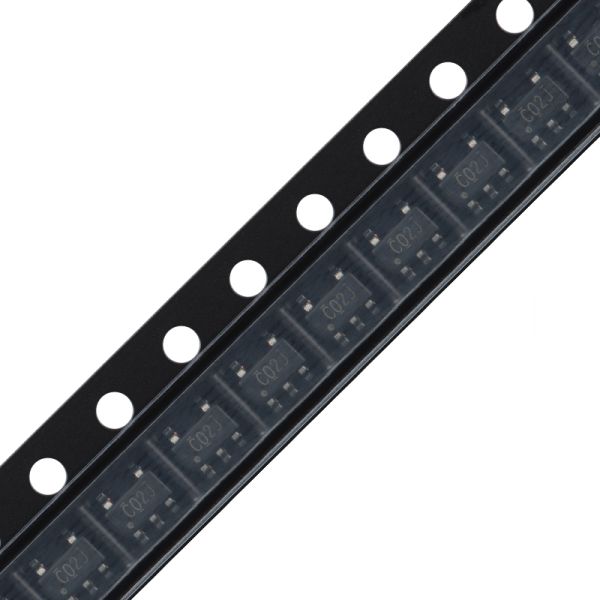

SN74LVC1G02DBVR Single 2-input 1.65-V To 5.5-V NOR Gate
The SN74LVC1G02DBVR is a single 2-input NOR gate that operates from 1.65V to 5.5V, providing versatile logic functionality for various digital applications.
Key Features
- Available in ultra-small 0.64 mm² package (DPW) with 0.5-mm pitch
- Supports 5-V VCC operation
- Inputs accept voltages up to 5.5 V
- Provides down translation to VCC
- Maximum propagation delay of 3.6 ns at 3.3 V
- Low power consumption: 10-μA maximum ICC
- ±24-mA output drive at 3.3 V
- Ioff supports live insertion, partial-power-down mode, and back-drive protection
- Latch-up performance exceeds 100 mA per JESD 78, Class II
- ESD protection exceeds JESD 22 standards:
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Technical Specifications
| Parameter |
Definition |
Min |
Max |
Unit |
| Tstg |
Storage temperature range |
-65 |
150 |
°C |
| ESD (HBM) |
Human body model, per ANSI/ESDA/JEDEC JS-001, all pins |
0 |
2 |
kV |
| ESD (CDM) |
Charged device model, per JEDEC specification JESD22-C101, all pins |
0 |
1 |
kV |
Product Images
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
